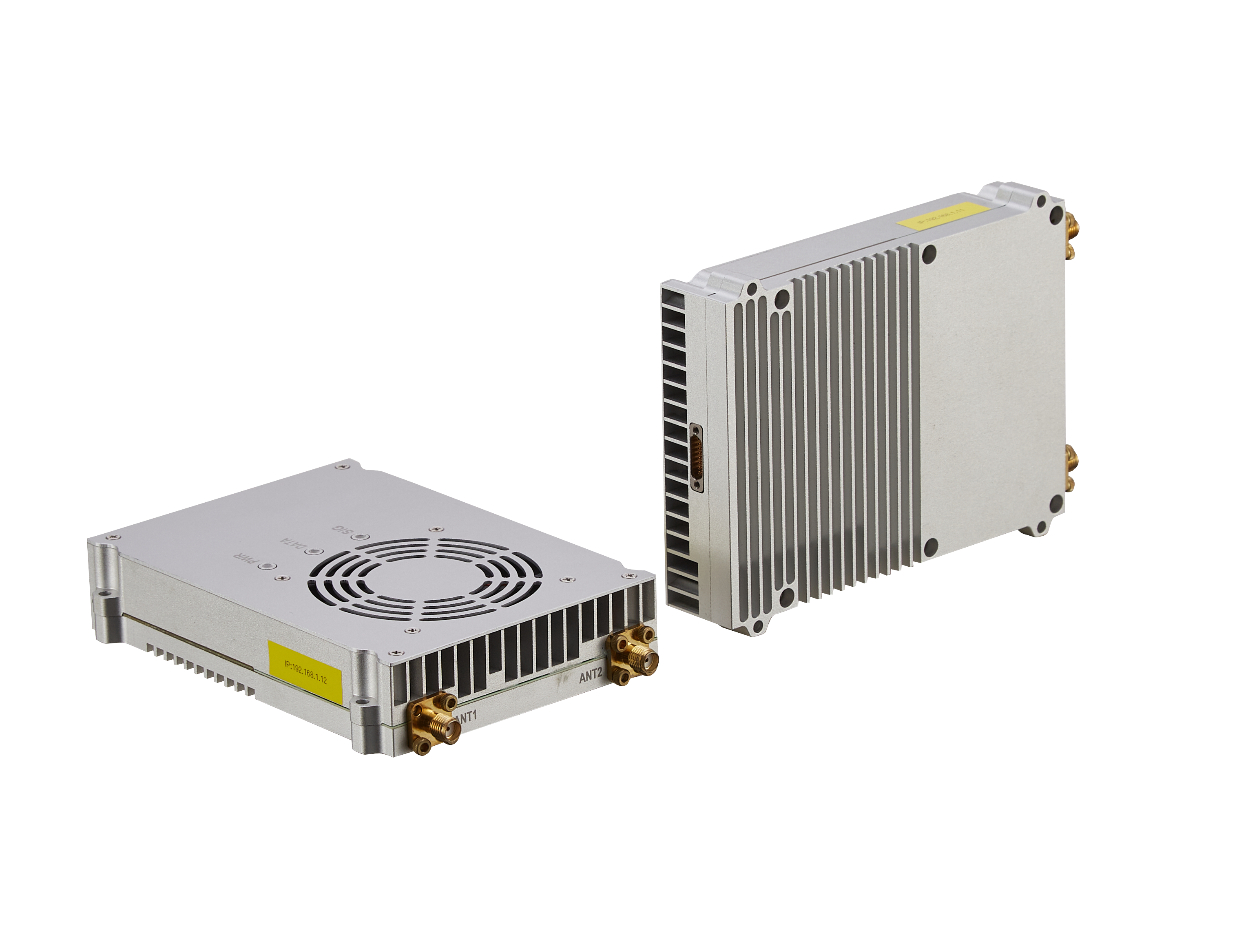

120Mbps MIMO Wireless IP Digital Data Link for HD Video and Data Communication

Model: FDM-6855UG

The FDM-6855UG, with its 120Mbps high bandwidth, 2×2 MIMO multi-antenna technology, dual-band adaptive anti-interference (600MHz/1.4GHz), and 64-node networking capability, is particularly suitable for scenarios with stringent requirements for real-time performance, stability, and multi-device collaboration, such as for unmanned vehicles and robots.

The FDM-6855UG is widely used in the UGV (unmanned ground vehicle) and robotics industries. It has an ultra-strong non-line-of-sight capability.120Mbps high bandwidth can support the multiple HD video streams transmission from cameras.

In complex terrains, it can achieve ultra-long transmission distances of up to 1-10 kilometers such as in buildings blocking, jungles, or underground tunnels, stable communication can still be maintained.

FDM-6855UG support IP transparent transmission and full-duplex transmission of control signals, which make the remote operation of unmanned systems. Its ultra-low latency capability makes remote operation smoother and more accurate.

The FDM-6855UG is an ideal solution for industries requiring a reliable, adaptable, and high-performance wireless transmission system for critical video and data communication tasks.

Inquire

Product Detail

Features

MIMO and CA Technology

Utilizes Carrier Aggregation and 2x2 MIMO technologies to deliver reliable, high-bandwidth communication links.it supports 120Mpbs transmission data rate

it adopts carrier aggregation technology CA technology, which can aggregate two 20MHz bandwidth carriers together to achieve 40MHz wireless carrier bandwidth, effectively improving the uplink and downlink transmission rates, and enhancing the robustness and environmental adaptability of the entire wireless transmission system.

Support multi-channel video streams concurrent transmission

it supports 4 channels of 1080P@60fps or 2 channels of 4K@30fps video streams for synchronous return transmission

IP Transparency

it adopts IP transparent transmission for seamless integration with video and data applications.

Directly connect to the robot control system through the Ethernet interface, achieving seamless integration of video streams with several kind protocols(eg. TCP/UDP).

Anti-Interference

Advanced FHSS and adaptive modulation ensure uninterrupted operation in challenging RF environments

Automatic Networking for 64 nodes

Supports plug-and-play operation with automatic route negotiation and dynamic networking for up to 64 nodes in point-to-point or point-to-multipoint configurations.

Rapid Deployment

Features rapid setup, high compatibility, low power consumption, and high bandwidth for immediate operation in diverse scenarios.

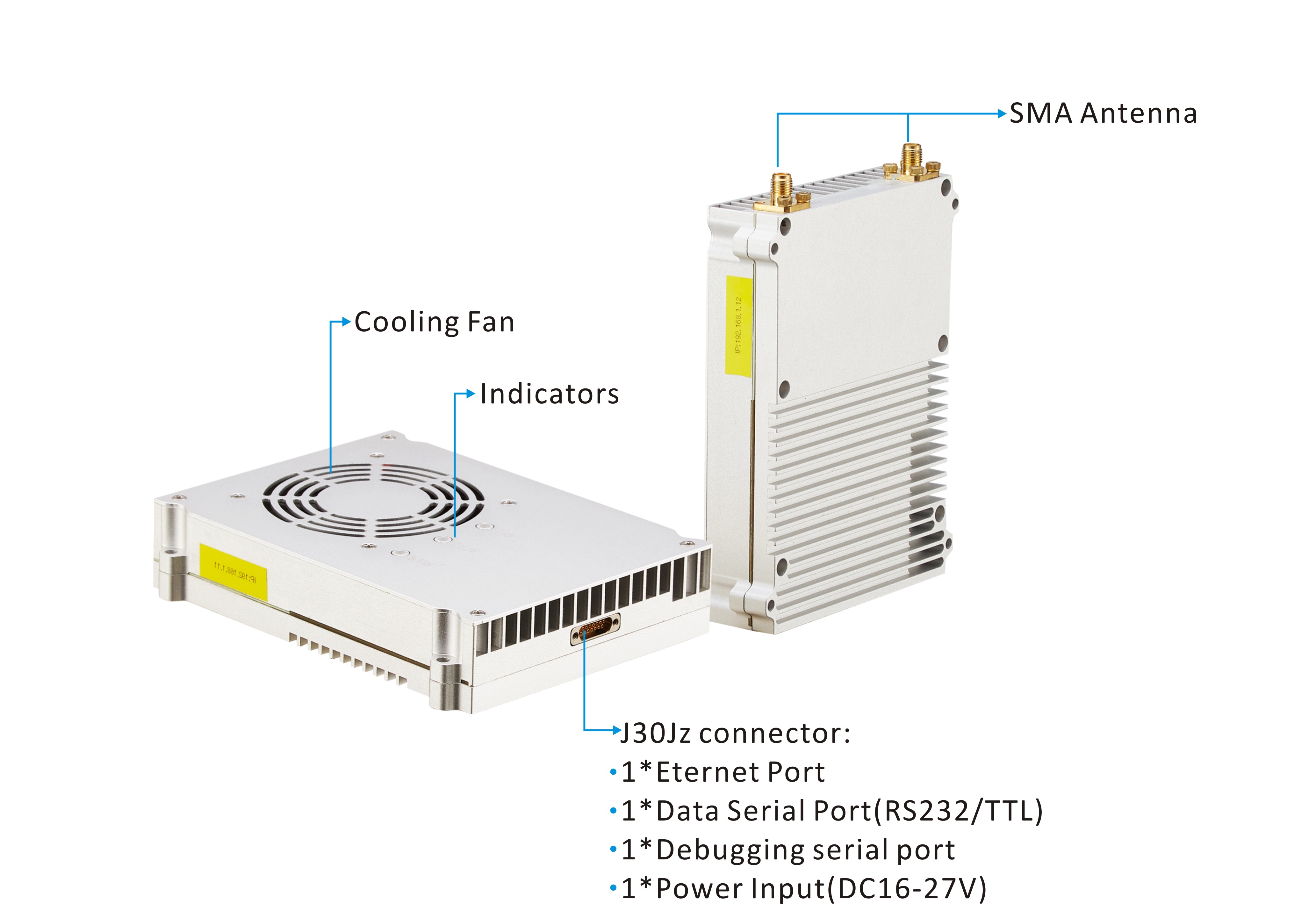

Various Ports

J30 Aviation Plug Interface: Facilitates multiple serial port and Ethernet communication connections

MECHANICAL
Working Temperture	-20℃~+55℃
Dimension	13010025mm(Antenna Not Included)
Weight	273g
INTERFACES
RF	2 x SMA
ETHERNET	1xEthernet
COMUART	3xSerial Port	1. DEBUG Serial Port2. Base Serial Port （only support TCP/UDP）3. Extend Serial Port
POWER	1xDC INPUT	DC24V-27V

Application

1. Industrial inspection robots with high-precision remote control. In chemical plants or power substations, UGVs and robots need to transmit 4K infrared thermal imaging video for the control center to analyze equipment status.

2. Manipulator control commands require millisecond-level delay to ensure operation safety. Multiple unmanned vehicles in warehouses or industrial parks need to share high-definition maps, obstacle avoidance data, and task instructions in real-time.

3. Operation of unmanned driving excavators in mining areas requires the vehicle to simultaneously transmit cabin monitoring, cargo box status, LiDAR point cloud, and multiple other data streams.

4. Multi-vehicle collaboration for urban unmanned delivery vehicles.

5. Remote control of fire extinguishing robots, synchronously transmitting thermal imaging video, gas sensor data, and robotic arm pressure feedback in high-temperature and dense smoke environments.

Specifications

GENERAL		WIRELESS
Technology	Wireless based on TD-LTE Technology Standards	Communication	1T1R 1T2R 2T2R
Video Transmission	1080p HD video transmission, H.264/H.265 adaptive	IP Data transmission	Supports data transmission based on IP packets
Encryption	ZUC/SNOW3G/AES (128) Optional Layer-2	Data Link	Full duplex communication
Data Rate	Max 100Mbps (Uplink and Downlink)	Up & Down Ratio	2D3U/3D2U/4D1U/1D4U
Range	UGV: 5-10KM Ground to ground (LOS) UGV: 1-3KM Ground to ground (NLOS)	Automatic Reconstruction Chain	Automatic link re-establishment after link failure/ re-deploy the network after a link failure
Capacity	64nodes	SENSITIVITY
MIMO	2x2 MIMO	1.4GHZ	20MHZ	-102dBm
Transmitting Power	5watts		10MHZ	-100dBm
Latency	Air interface delay<30ms		5MHZ	-96dBm
Modulation	QPSK, 16QAM, 64QAM	600MHZ	20MHZ	-102dBm
Anti-Jamming	Frequency Hopping and Adaptive Modulation		10MHZ	-100dBm
Bandwidth	1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz		5MHZ	-96dBm
Power Consumption	30Watts	FREQUENCY OPTION
Power Input	DC24V-DC27V	1.4Ghz	1420Mhz-1530MHz
Dimension	8612024.2mm	600Mhz	634Mhz-674Mhz
