5W Tactical Mesh Radios Handheld Video and PTT MIMO MANET Radio

Model: FD-7805HS

Keep Your Team Connected!

Video, IP, Data & Voice solutions that enable you to unites all the critical data sources in real time.



FD-7805HS is engineered to deliver robust, secure networking in any environment, seamlessly integrating critical data streams in real time. As a smart tactical IP MESH networking device, it combines data, video, voice and GPS into a single, highly scalable Mobile Ad Hoc Network (MANET)ensuring your team has the most advanced connectivity, anytime, anywhere.



FD-7805HS delivers 5W output power, utilizes rechargeable and removable batteries and is compatible with a wide range audio and camera, which significantly decreases the amount of gear you have to carry.



FD-7805HS 2×2 MIMO wireless communications links offer 100Mbps throughput and supports 64nodes to operate at same time during mission operations. Teams equipped with the FD-7805HS will maintain seamless connectivity and share critical information in real time.


Product Detail

Features

• Field-switchable Between 600MHz and 1.4GHz

The FD-7805HS is a Software-Defined Radio (SDR) and built on IWAVE's Switchable Frequency Architecture. This design allows users to select a suitable band between L-band and UHF band.

Band 1.4G: 1420-1530Mhz and UHF: 566-678Mhz

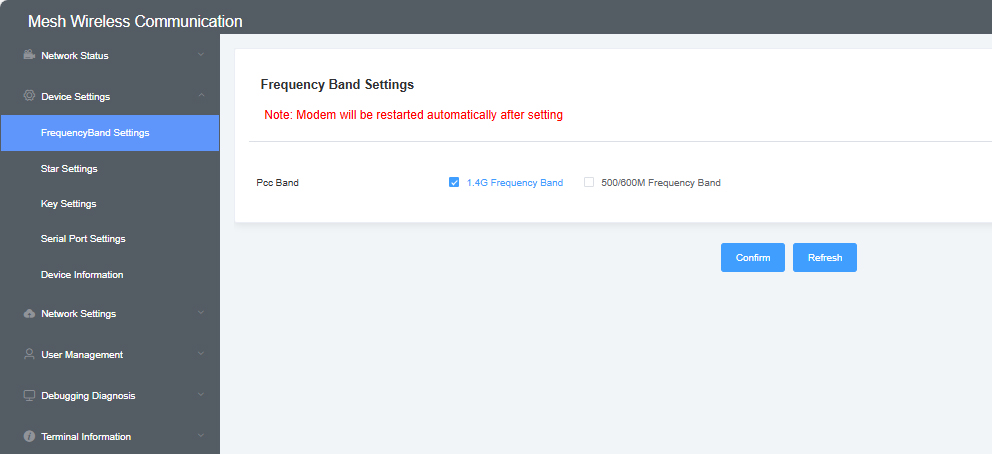

Users can switch between L-band and UHF frequencies on site through software. There is no need to replace the entire radio or open the device to replace the embedded radio module. The entire operation process is simple and fast. So that users can continue to perform tasks quickly.



Software defined audio, multiple hardware connection types and in-built GPS receiver enable the FD-7805HS to be the most advanced tactcial mimo radios for high-stakes industries such as military, law enforcement, and emergency rescue.

Mesh radio node

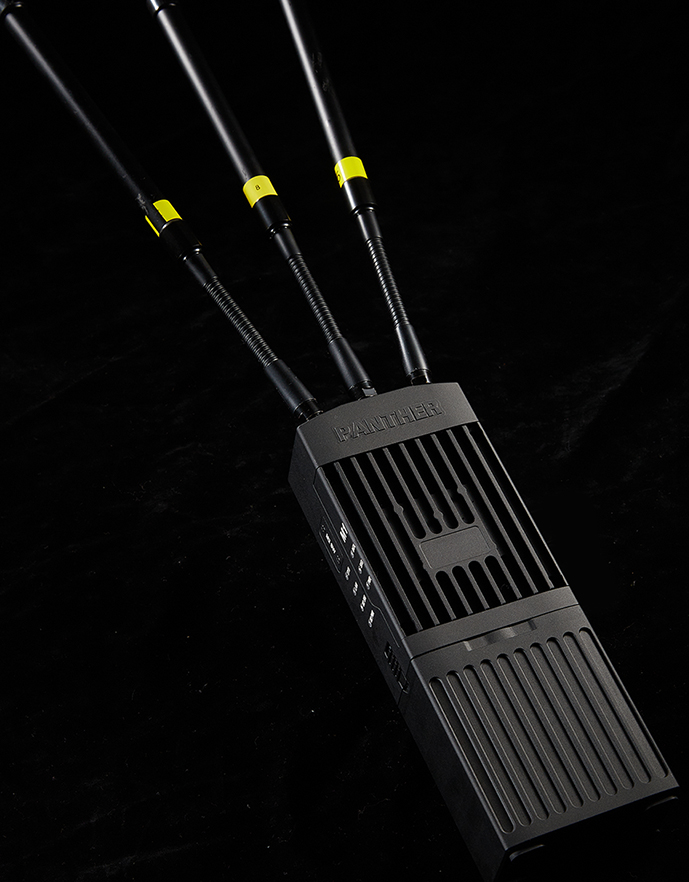

MANET Smart Radio

• FHSS(Frequency Hopping Spread Sprectrum)

Utilizing IWAVE's proprietary algorithms and mechanisms
FD-7805HS will internally calculate and evaluate the current link quality based on RSRP, SNR, and SER,ect. When predefined thresholds are met, the system initiates frequency hopping and selects the optimal frequency point from its database.
Frequency hopping execution depends entirely on real-time wireless conditions:
1. No hopping occurs when link quality remains stable
2. The system maintains current frequency until conditions meet switching criteria



• Streaming HD Video
The FD-7805HS offers dual on-board HD-capable video encoders and support for a variety of different camera interfaces including HDMI (with optional cable) and 3G-SDI, while the FD-7805HS provides H.265 encoding and streaming capabilities with resolutions up to full HD 1080p. For enhanced flexibility, optional SDI or HDMI modules are available to interface with various camera systems.



•Clear And Dynamic PTT Audio
Reliable voice communication is critical to mission success. The FD-7805HS delivers crisp, high-quality Push-to-Talk (PTT) audio. With IWAVE tactical MIMO radios, you maintain continuous voice connectivity—even around corners and through challenging environments.

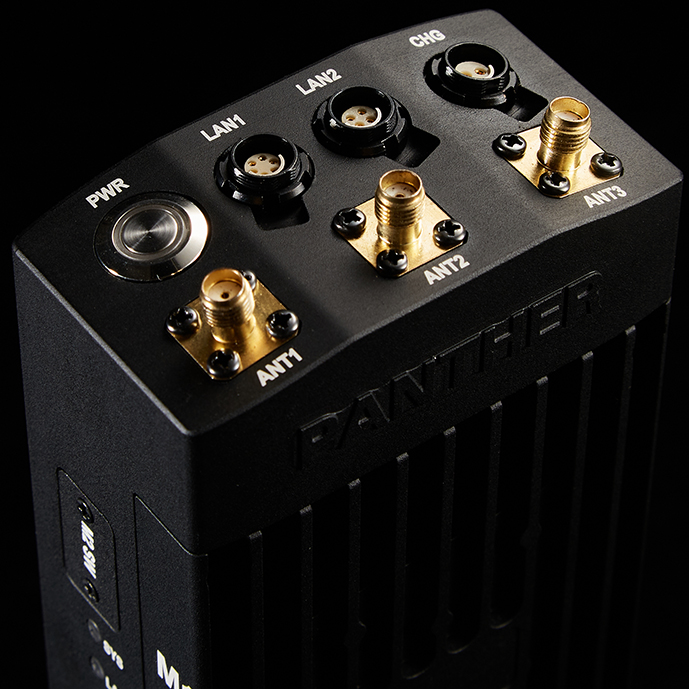

Various Ports

PWR Power On/Off
LAN1 Aviation Connector with Composite Ethernet Interface
10/100Mbps self-adaptive
Integrated 12V DC power output (supports helmet cameras/PTT modules)
LAN2 Standard Aviation Ethernet Interface
10/100Mbps auto-negotiating
Uses matching aviation-grade Ethernet cables for external device connectivity
CHG Aviation-Grade Charging Port
12V DC power input
Powered/charged via dedicated aviation connector cable
ANT1 Host Device RF Interface
SMA connector (female/male)
Connects to peer devices via included mesh antenna
ANT2 Host Device RF Interface
SMA connector (female/male)
Connects to peer devices via included mesh antenna
ANT3 Detachable RF Interface with SMA Connector
Standard mesh antenna included for peer-to-peer device connection
Quick-disconnect SMA interface (male/female) for flexible deployment
wireless MIMO

Application

FD-7805HS is Mobile Ad-hoc Networking (MANET) smart radio equipped with 2x2 MIMO technology and supporting 64-node networks. It integrates GPS positioning, native video encoding/decoding, and PTT audio capabilities – enabling your team to share a unified operational picture in real time.

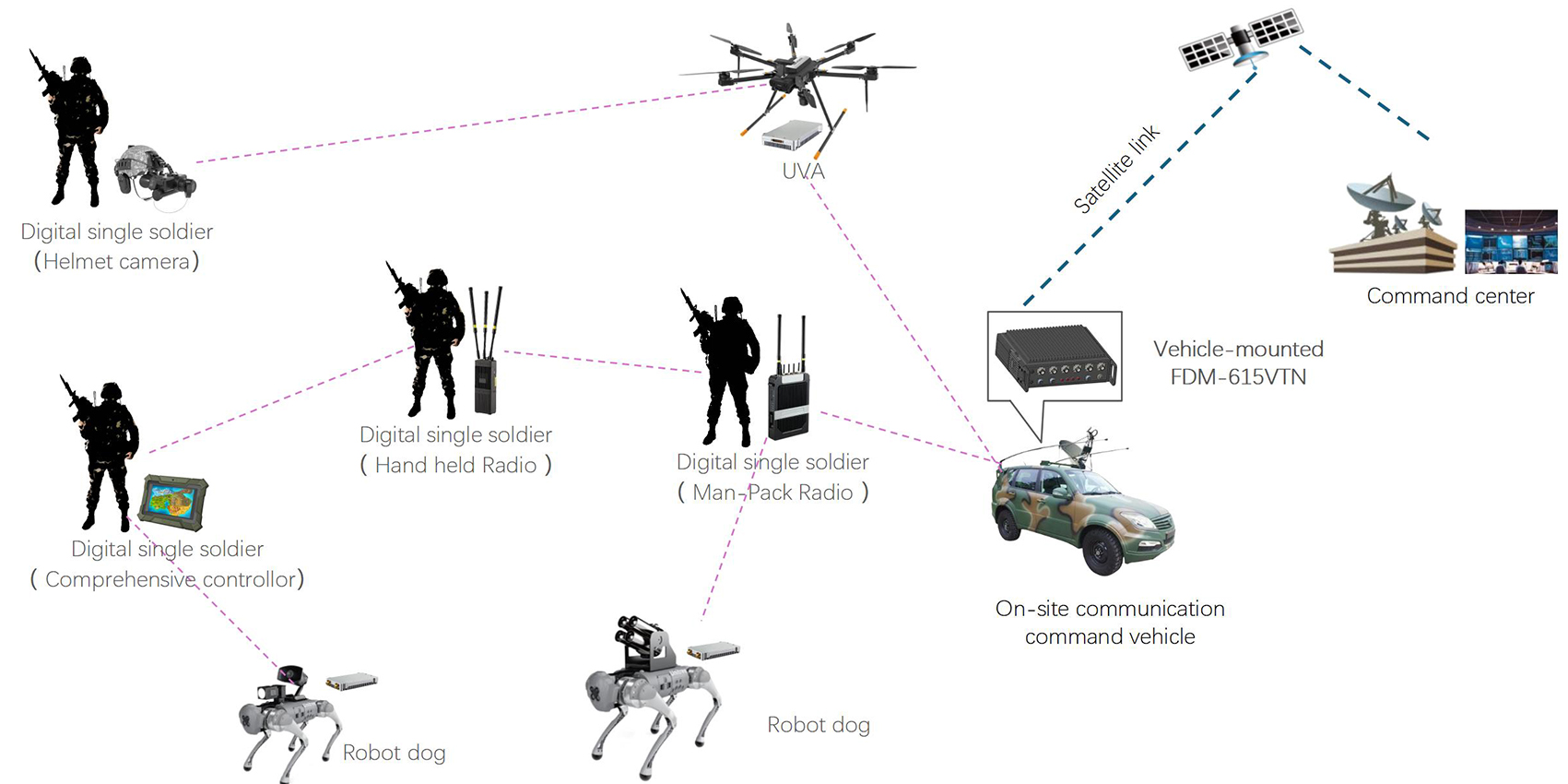

Cross Platform Connectivity

The FD-7805HS utilizes IWAVE's proven and industry-leading MS-LINK technology (featuring proprietary time-slot frame structure and waveforms), housed in a portable ruggedized enclosure. This enables ground-based end users to automatically establish mesh networks with manned/unmanned vehicles, UAVs, maritime assets, and infrastructure nodes to create robust battlefield connectivity.

military tactical radios

Specifications

General  Mechanical
Technology MESH Temperature -20º to +55ºC
Encryption ZUC/SNOW3G/AES(128) OptionalLayer-2 Encryption IP Rating IP65
Modulation QPSK/16QAM/64QAM Battery 5000mAh/55.5Wh(Removable)
Data Rate 100Mbps Dimension 20.8*7.6*4.3cm
Sensitivity 10MHz/-103dBm Weight <1.5Kg
Range 500m-10km(depends on the actual environment) Material Black Anodized Aluminum
Bandwidth 3MHz/5MHz/10MHz/20MHz/40MHz
Node 64nodes Mounting Handheld Pattern
MIMO 2X2 MIMO Power
RF Power 2*2w/2*5w Voltage DC12V
Latency One Hop Transmission≤30ms Power Consumtpion 30watts
Diagnostics Spectrum Scanning, Statistics Logging, Temperature/Voltage Monitoring Battery Life 4Hours
Anti-Jamming Frequency hopping Interfaces
Frequency Band  RF 3 x SMA
 1.4G 1420-1530MHz Ethernet 2xEthernet
 600Mhz 566Mhz-626Mhz Power DC INPUT
