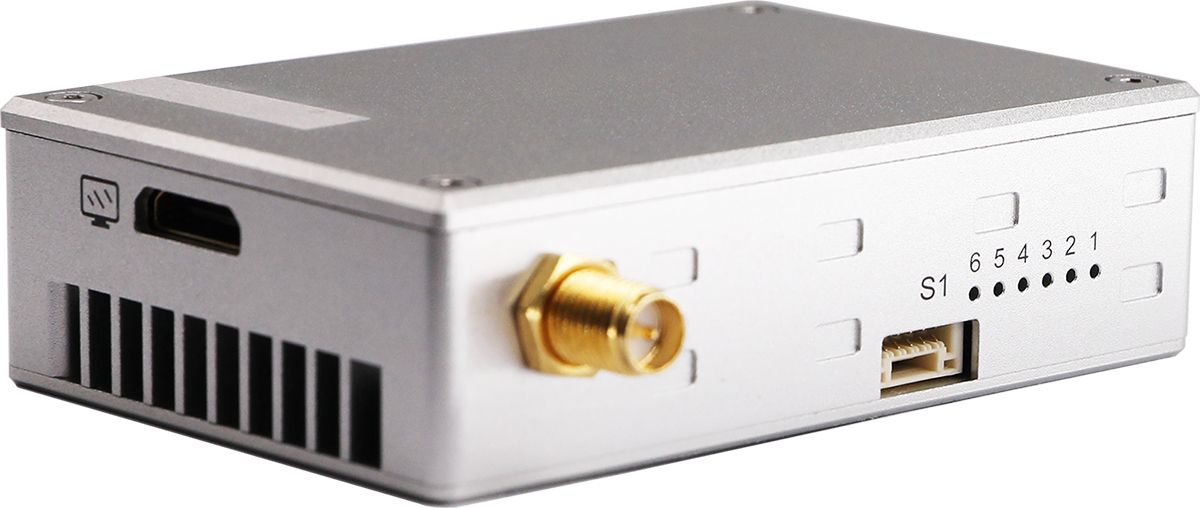

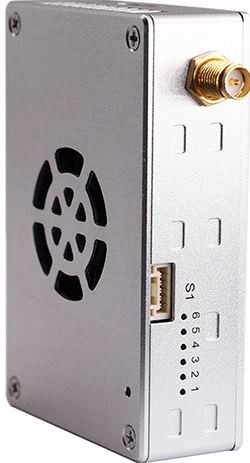

5km 2.4Ghz Drone Video Transmitter for FHD HDMI Camera and Flight Control Data
● H.264 technology and H.265's Algorithms for Video compression
● Based on TDD-OFDM modulation
● AES128 encryption
● Air to ground 4-6km(LOS)
● Bandwidth 4Mhz
● Support HDMI and IP Camera video transmitting
● End to end delay: 15ms-30ms
● HDMI Input/Output
●Input/Output RJ45 Ethernet 10/100Mb/s
●Resolution 1080p
●Software for configuration
●CNC technology double aluminum alloy housings featured, good impact resistance and heat dissipation
● Wireless transmit HD video and Telemetry data
● Transmit TCPIP/UDP Data via Ethernet port
● Size: 72×47x19mm
● Weight: 93g
Orthogonal Frequency Division Multiplexing (OFDM)
Effectively eliminate multipath interference under long-distance wireless transmission
Full HD Resolution
Unlike analog systems, which limit you to SD resolution, the digital FIM-2405 Mini uav transmitter and receiver system provides support for up to 1080p30
Short Latency
Featuring 15-33ms latency, the iwave FIM-2405 drone transmitter nearly does not buffer or hold your video, so you can see and control what's happening live. Use FIM-2405 Mini UAV videolink to help you fly and operate the gimbal.
Encrypted Transmission
FIM-2405 drone video link adopts AES128 for the video encryption to guarantee no one can intercept your video feed without authorization.

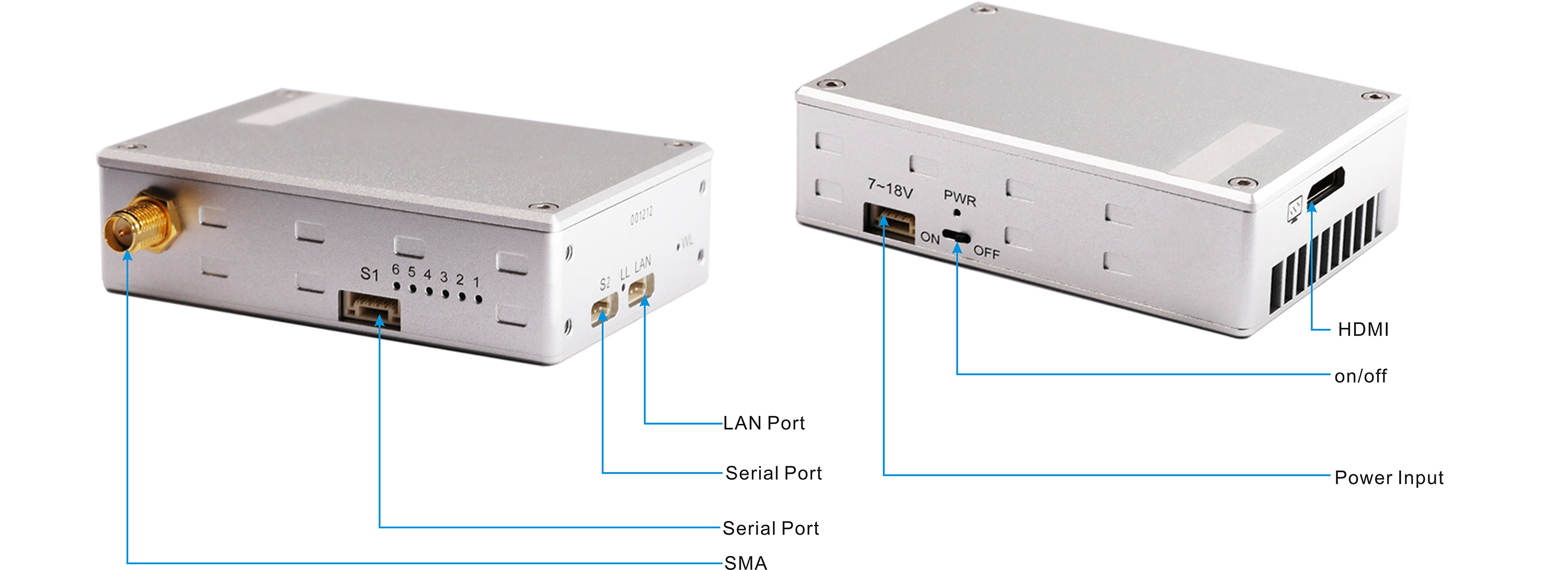

FIM-2405 uav cofdm video transmitter provides users various ports HDMI, LAN and bi-directional serial. These ports enable HD video and mavlink telemetry data to be transmitted upto 4-6km between air unit and ground control station. The serial port is designed to be used with the cube autopilot, pixhawk 2/V2.4.8/4 , Apm 2.8. The HDMI and LAN port is compatible with the standard hdmi camera and ip camera on the market.
Speical designed for UAV air to ground LOS 5km HD video and flight control data transmitting for aerial photography, News, sports events, hidden investigation,video surveillance, real-time wireless video transmission and other fields.
Secure transmission kit for surveillance drone for Law Enforcement and civil rescue.
Crisis management solution by encrypted wireless transmission living video streaming.
| Frequency | 2.4GHz(2402Mhz-2482MHz) |
| Error Detection | LDPC FEC/Video H.264/265 Super Error Correction |
| RF Transmitted Power | 500mW (Air to ground 5km) |
| Power Consumption | TX: 9Watts |
| RX: 6Watts | |
| Bandwidth | 4MHz |
| Latency | ≤15-30ms |
| Transmission Rate | 3-5Mbps |
| Receive Sensitivity | -100dbm@4Mhz |
| Video Color Space | Default 4:2:0 |
| Antenna | 1T1R |
| Video Input/output Interface | HDMI mini TX/RX, or transform FFC to HDMI-A RX/TX |
| Video Compressed Format | H.264+H.265's Algorithms |
| Bit Rate | Software adjustment, Max 115200bps |
| Encryption | AES 128 |
| Transmission Distance | Air to ground 5km |
| Start-up time | < 30s |
| Two-way function | Support video and duplex data simultaneously |
| Data | Support bi-directional TTL |
| Power supply | DC 7- 18V |
| Interface | 1080P/60 HDMI Mini RX x1 |
| 100Mbps Ethernet to USB / RJ45 on Windows × 1 | |
| S1 TTL bi-directional serial port x1 | |
| Power Input x1 | |
| Indicator Light | HDMI input/output Status |
| Transmitting and receiving | |
| Video board working Status | |
| Power | |
| HDMI | HDMI mini |
| Temperature Range | Operating temperature：-40°C ~+ 85°C |
| Storage temperature：-55°C ~+ 100°C | |
| Appearance Design | CNC technology/ double aluminum alloy shell |
| Dimension | 72×47×19mm |
| Weight | Tx: 94g/Rx: 94g |
