Handheld IP MESH Radio for Tactical HDMI Video Transmitting In NLOS

Model: FD-6700M

Teams on-the-move operate in complex RF environment and NLOS jungles, which require their wireless communication equipment has good flexibility and strong NLOS transmission ability.

FD-6700M offers a seamless and highly safe private network in NLOS and moving conditions. It employs a 5000mAh battery and compatible with Android mobile phone for video, voice and data transmitting. FD-6700M is ideal for variety of Tactical Mesh deployments.

FD-6700M comes with HDMI helmet cameras, GPS and RS232 interface are available.

Based on 2×2 MIMO technology, the FD-6700M Mobile Mesh Smart Radio can achieve a NLOS range of 1-3 km and throughput of up to 30 Mbps. It has been widely used as a handheld tactical radio.


Product Detail

Features

Strong NLOS Ability

When your team carry out tasks in dense jungles, underground and mountains, FD-6700M makes your data move faster and longer by via its 2x2 MIMO technology.

Teams equipped with the FD6700M will stay connected and able to share critical information.

Real Time Video

FD-6700M built in a HD-capable video encoder for HDMI camera input

Real-Time Situational Awareness

By sharing all the team members position and full motion HD video help leaders make quick decision.

Tri-band Frequency Adjustable

800Mhz/1.4Ghz/2.4Ghz selectable on software based on the RF environment and signal quality.

10hours Continuous Working

Designed with 5000mAh removable and rechargeable battery to meet a long time working time.

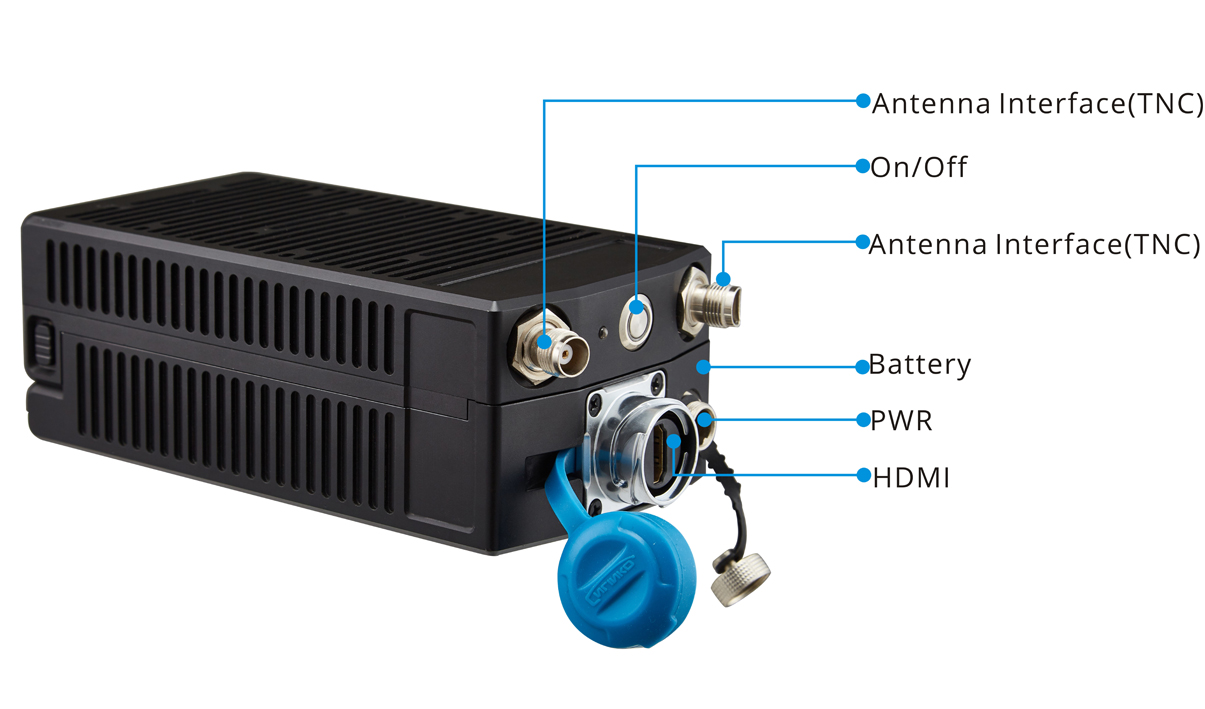

digital handheld radio

Latency

measured between endpoints in the loaded network, latency of the network averaged less than 30ms.

Collaboration

FD-6700m can smoothly work with IWAVE other type IP MESH device such as high power vehicle type, airborne type and UGV mount IP MESH Radio forming a big communication network.

Application

Based on our advanced algorithm, FD-6700M provides secure, highly reliable connectivity for a range of demanding applications, including real-time video transmission for mobile surveillance, NLOS (non-line-of-sight) communications, and command and control of drones and robotics.

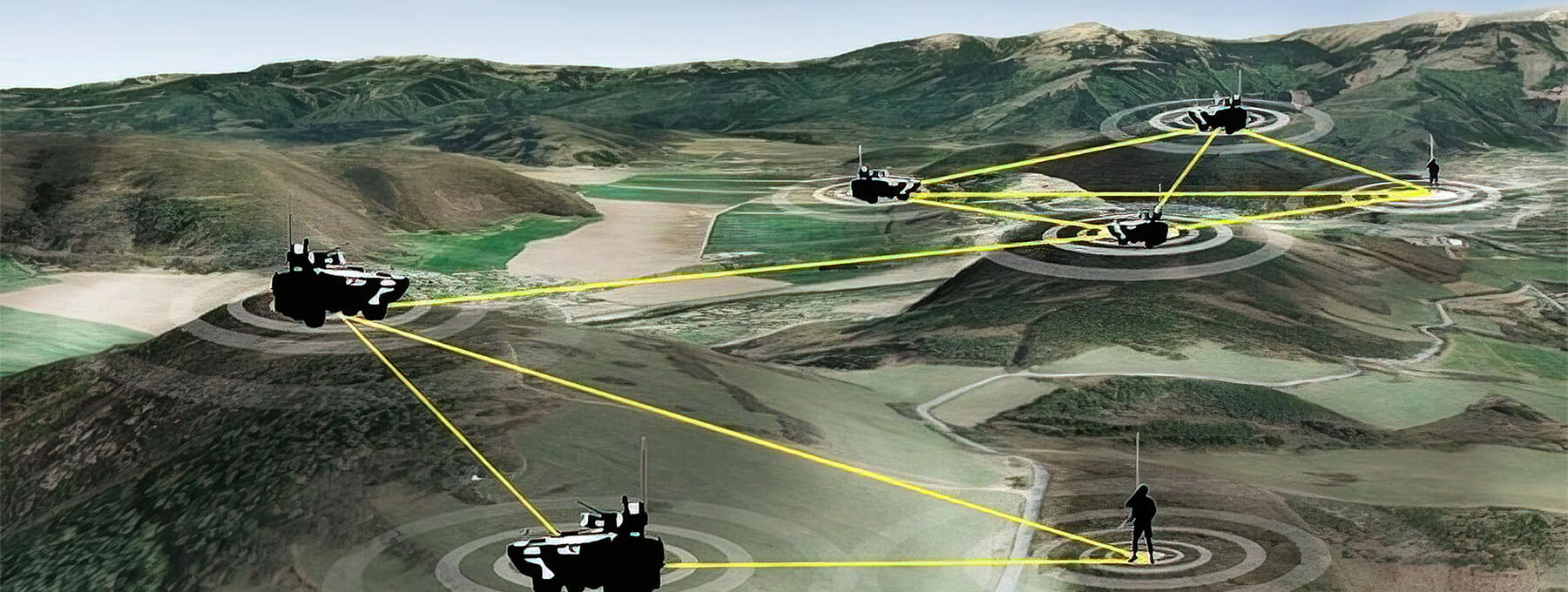

TACTICAL MIMO RADIOS

Specification

GENERAL
TECHNOLOGY MESH base on TD-LTE Wireless technology standard
ENCRYPTION ZUC/SNOW3G/AES(128/256) OptionalLayer-2
DATA RATE 30Mbps(Uplink and Downlink)
RANGE 500m-3km(nlos ground to ground)
CAPACITY 32nodes
MIMO 2x2 MIMO
POWER 200mw
LATENCY One Hop Transmission≤30ms
MODULATION QPSK, 16QAM, 64QAM
ANTI-JAM Automatically Cross-Band frequency hopping
BANDWIDTH 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz
POWER CONSUMPTION 5Watts
BATTERY LIFE 10Hours(Buckled Battery)
POWER INPUT DC9V-12V
SENSITIVITY
2.4GHZ 20MHZ -99dBm
10MHZ -103dBm
5MHZ -104dBm
3MHZ -106dBm
1.4GHZ 20MHZ -100dBm
10MHZ -103dBm
5MHZ -104dBm
3MHZ -106dBm
800MHZ 20MHZ -100dBm
10MHZ -103dBm
5MHZ -104dBm
3MHZ -106dBm
FREQUENCY BAND
2.4Ghz 2401.5-2481.5 MHz
1.4Ghz 1427.9-1467.9MHz
800Mhz 806-826 MHz
MECHANICAL
Temperature -25º to +75ºC
Weight 1.3kg
Dimension 18*9*6cm
MATERIAL Anodized Aluminum
MOUNTING Handheld Type
Stability MTBF≥10000hr
INTERFACES
RF 2 x TNC
On/Off 1xPower on/off Button
Video Input 1xHDMI
POWER DC INPUT
INDICATOR Tri-COLOR LED
