Dual Band Mini UGV Data Link For Low Latency Video And Telemetry Data

Model: FDM-6823UG

When your robotic platforms (such as UGVs or other robots) operate deep inside buildings, culverts, pipelines, and other complex structures, the FDM-6823UG UGV Communications Solution delivers high-bandwidth video, C2 (Command and Control), system health, and telemetry data from a safe standoff distance—enabling remote operation and real-time situational monitoring.

●2×2 MIMO 100-120Mbps High-throughput

●One master node supports 64slave nodes

●Long range: 1-3km ground to ground NLOS

●Supports Point to point and point to multiple points network

●Tiny radio: 12.7*9.4*1.8cm/281g

●600Mhz+1.4Ghz software selectable Multi-band and available Sense for advanced inteference-avoidance

●Strong anti-jamming ability: high speed hopping frequency technology(≥300hops/s)

●PtMP wireless link enables swarm capability between multiple manned and unmanned systems.

FDM-6823UG adopts advanced IP star network, high speed FHSS technology to ensure a robust HD video streaming and telemetry data for nonline-of-sight tele-robotics missions in harsh urban environments and remote locations.

Inquire

Product Detail

Features

Multi-Band

IWAVE's Star Network Technology enables multi-band and multi-channel coordination on a single radio device. Users can seamlessly switch between the L-band (1.4GHz) and UHF (600MHz) via software, with superior obstacle-penetration capabilities. This enables::

●Ultra-wide frequency selection: 1420–1530MHz & 566–678MHz for enhanced anti-interference performance.

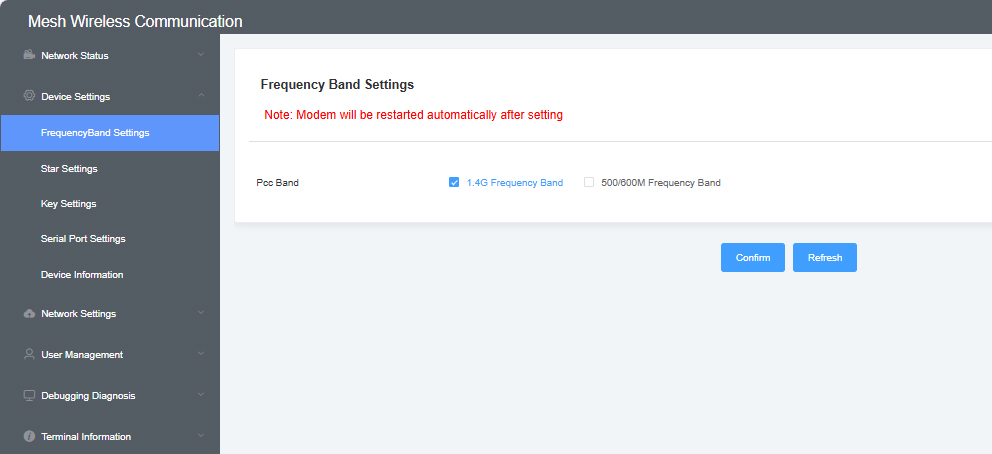

●Switch frequencies easily: Quickly switch between 600MHz and 1.4GHz through management software—no complex operations required.

●2x2 MIMO Technology: Stronger signal & stable connections
●5W High Power Output: long communication distance and strong penetration ability.
●AES128 Encryption: Security wireless link to prevent unauthorized access
●100-120Mbps Speed: Enable full HD video streamning transmission
●64-Node Network: 1 master controls 64 slave devices
●1-3km NLOS Range: Reliable ground-to-ground, non-line-of-sight
●P2P & P2MP Modes: Flexible networking options for one UGV or robotic swarms application.
●Dual-Band (600MHz/1.4GHz) – Software-selectable frequencies
●Strong Anti-jamming Ability – Multi-band sensing & fast hopping (300+ hops/sec)
●Ultra-Compact Design: 12.7×9.4×1.8cm, 281g

Anti-Jamming
●Frequency Hopping Spread Spectrum (FHSS) Technology: FDM-6823UG FHSS system can achieve ultra-fast hopping rates exceeding 300 hops/sec for mission-critical communications requiring anti-jamming, low latency, and high reliability.
●Dual Band selectable via software: Users can select the working frequency between 1.4Ghz and 600Mhz to avoid the interference.

Long non-line-of-sight range 3km
●With an ultra-high sensitivity of -102dBm/20MHz, dual-band capability, and advanced high-speed frequency hopping technology, the FDM-6823UG delivers reliable communication over distances of 3km or more—even in complex NLOS (Non-Line-of-Sight) environments.

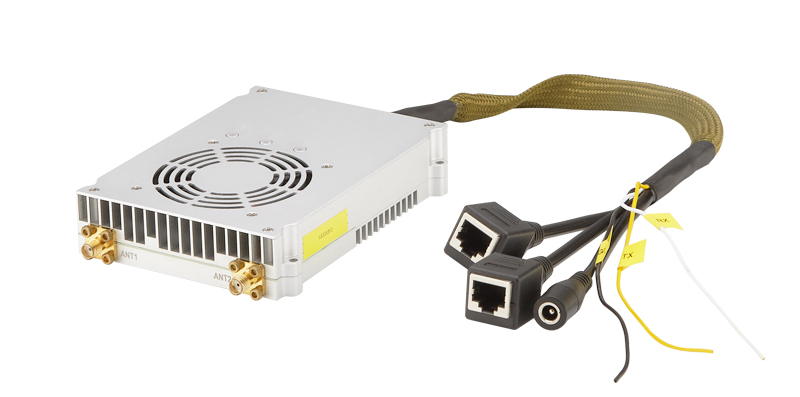

Easily Integration

●With the API document, AT command, 3D file and technical support, users can easily integrate FDM-6823UG into any advanced robotics application for long-range, high-bandwidth performance.
FDM-6832 UGV datalink is your single-radio solution to enable convoy and swarm capability between multiple manned and unmanned systems.

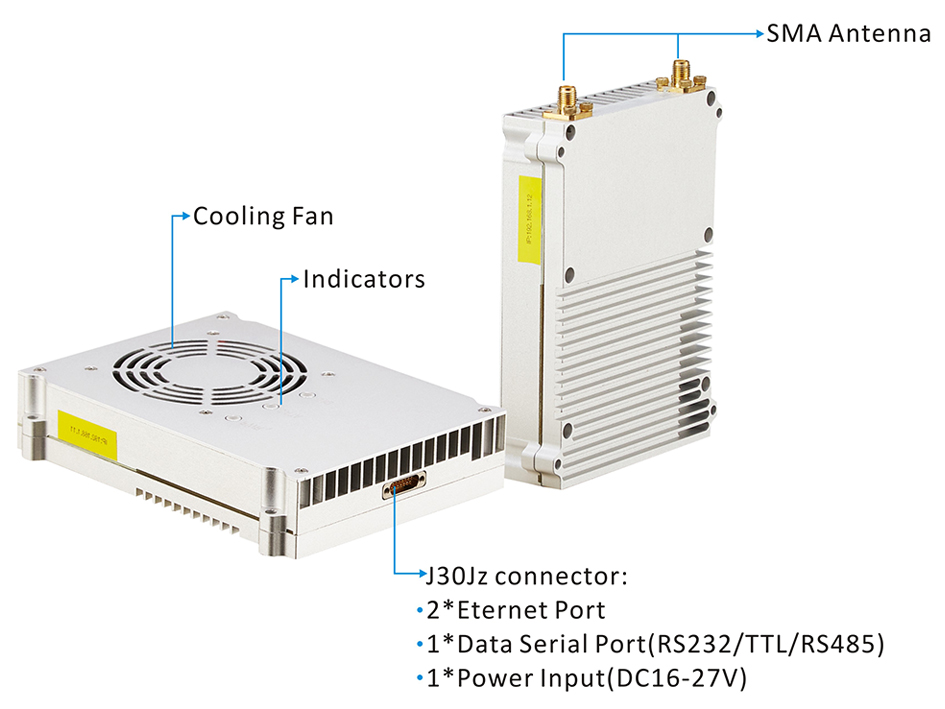

Various Ports

MECHANICAL
Working Temperture	-20℃~+55℃
Dimension	12.7×9.4×1.8cm(Antenna Not Included)
Weight	281g
INTERFACES
RF	2 x SMA
ETHERNET	1xEthernet
COMUART	1xSerial Port	Full duplex communication: RS232/TTL/RS485
POWER	1xDC INPUT	DC16V-27V

Application

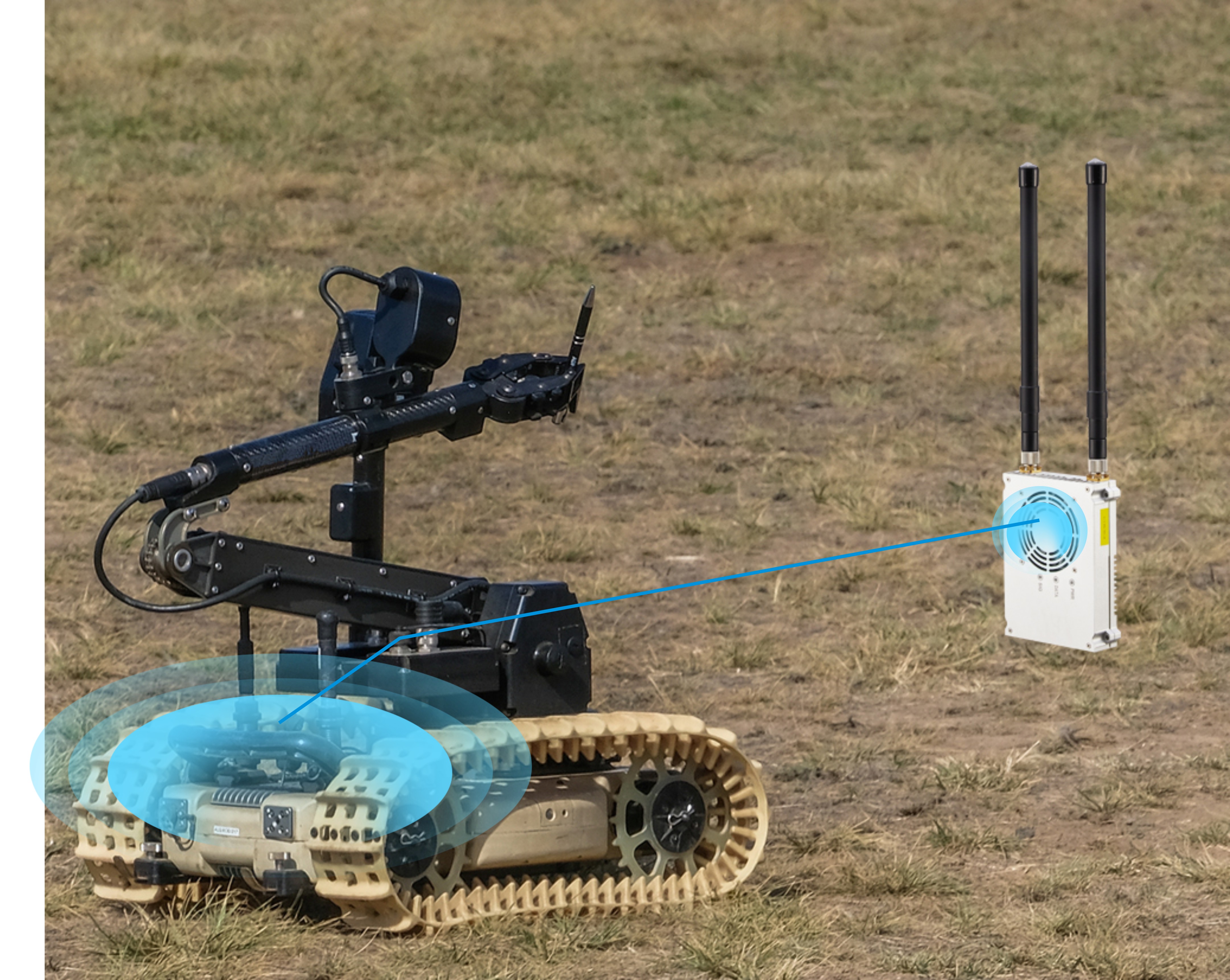

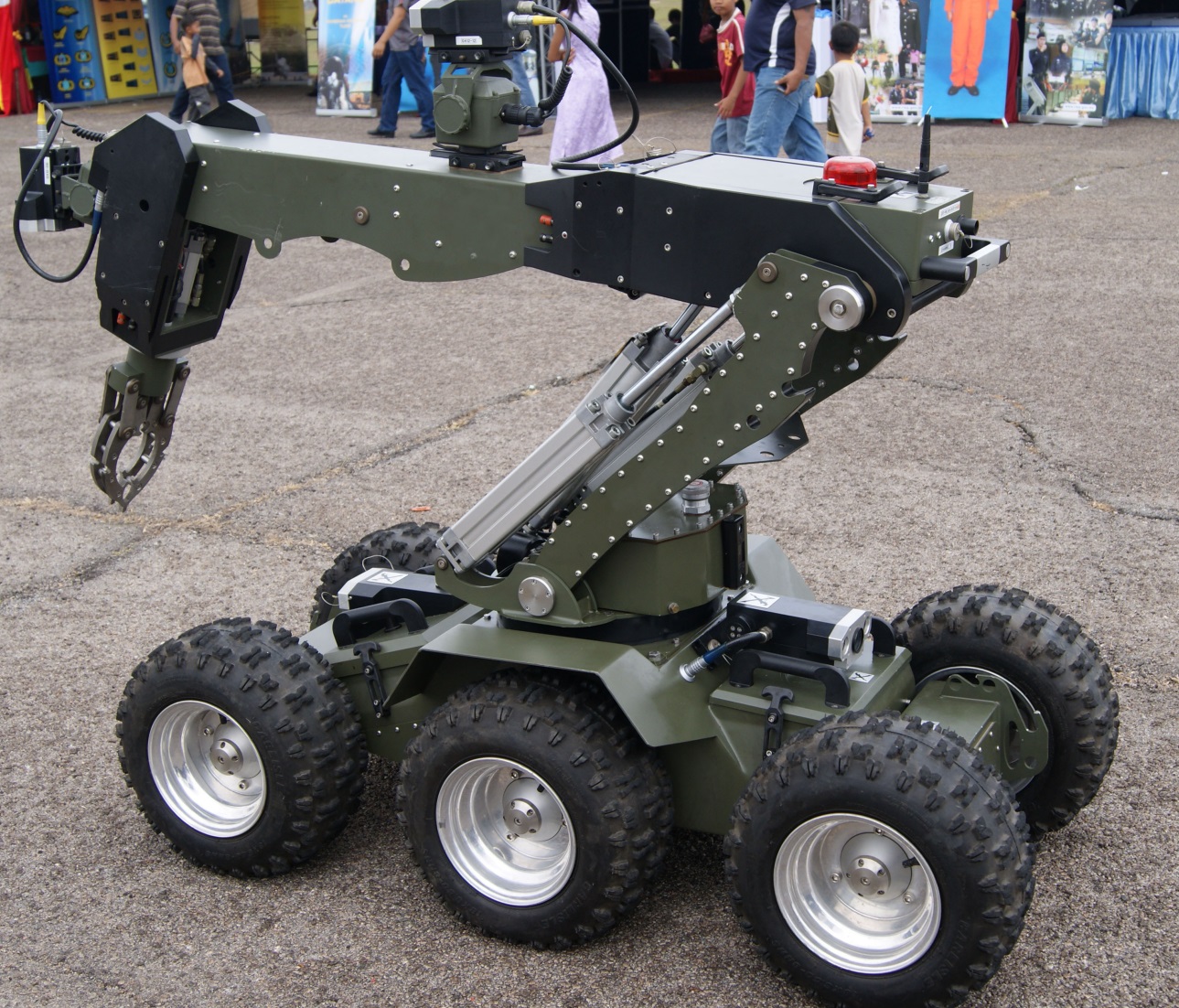

Robotic missions demand dependable wireless links that perform consistently in scenarios where operator intervention ranges from impractical to impossible. The IWAVE radio excels in non-line-of-sight (NLOS) tele-robotics operations, delivering robust performance in both harsh urban environments and remote locations.

●Pipeline detection/disposal
●Fire rescue
●Route clearance
●Combat engineering
●UGV/Robot dog swarm

●Manned/unmanned teaming
●Power Plant Monitoring
●Power Plant Monitoring
●Urban Search & Rescue
●Police operation

Specifications

General		Wireless
Technology	Star Network based on IWAVE proprietary time slot frame structure & waveform.	Communication	1T1R1T2R2T2R
Video Transmission	1080p HD video transmission, H.264/H.265 adaptive	IP Data Transmission	Supports data transmission based on IP packets
Encryption	ZUC/SNOW3G/AES(128) Optional Layer-2	Data Link	Full duplex communication
Data Rate	Max 100-120Mbps(Uplink and Downlink)	Up And Down Ratio	2D3U/3D2U/4D1U/1D4U
Range	1-3km Ground to ground(NLOS)	Automatic Reconstruction Chain	Automatic link re-establishment after link failure/ re-deploy the network after a link failure
Capacity	64nodes	Sensitivity
MIMO	2x2 MIMO	1.4GHZ	20MHZ	-102dBm
POWER	2watts(DC12V) 5watts(DC27)		10MHZ	-100dBm
Latency	Air interface delay<30ms		5MHZ	-96dBm
Modulation	QPSK, 16QAM, 64QAM	600MHZ	20MHZ	-102dBm
Anti-jamming	FHSS(Frequency Hop Spread Spectrum) and Adaptive Modulation		10MHZ	-100dBm
Bandwidth	1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz		5MHZ	-96dBm
POWER CONSUMPTION	30Watts	Frequency Band
POWER INPUT	DC16-27V	1.4Ghz	1420Mhz-1530MHz
DIMENSION	12.79.41.8cm	600Mhz	566Mhz-678Mhz
