4G LTE Integration Base Station for Emergency Communication

Model: Patron-G20

4G LTE Integration base station is a highly integrated wireless communication system, including core network processing system unit, baseband processing system unit, wireless radio frequency transmission unit, and multimedia dispatching command server unit, forming a complete TD-LTE wireless private network and multimedia scheduling business.

Patron-G20 operates in TDD mode and provide users with multimedia trunking, video and voice, and video surveillance efficiently and cheaply.

It is always deployed in 10 minutes for ensuring 24hours 4G LTE network during emergency event and cover more than radius 20km area. The solution significantly improves dispatch efficiency and quick response capability at lower cost.

Inquire

Product Detail

Patron-G20 4G LTE Integration Base Station For Emergency Communication

Features

1. All-in-one compact design

Highly integrates baseband processing unit (BBU), Remote Radio Unit (RRU), Evolved Packet Core (EPC), multimedia dispatch server, and antennas.

2. High Performance and Multifunctional

Provides LTE-based professional trunking voice, multimedia dispatch, real-time video transferring, GIS location, audio/video full duplex conversation etc.,

3. Flexibility

Frequency Band optional: 400MHZ/600MHZ/1.4GHZ/1.8GHZ

4. Deployment: Within 10mins

Ideal for fast deploy a critical communication system in the field where the public communications network is down or events and emergency situations experience weak signals.

5.Transmit Power: 2*10watts

6. Wide Coverage: radius 20km (suburban environment)

KEY FEATURES

No need on indoor equipment

Easy maintenance and quick installation

Supports 5/10/15/20 MHz bandwidth.

Ultra-Broadband Access 80Mbps DL and 30Mbps UL

128 active users

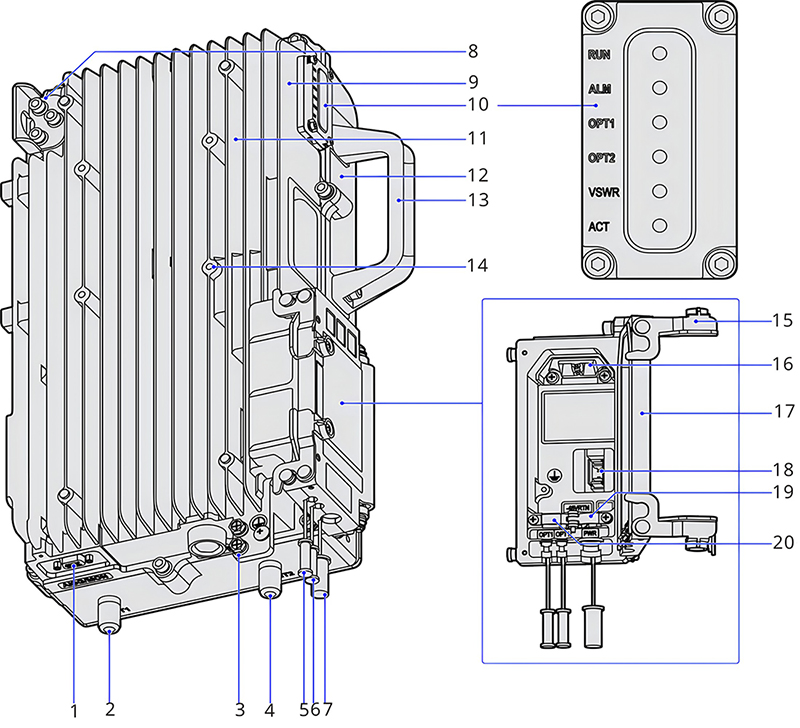

Instructions for integration

1.AISG/MON Port

2.Antenna interface 1

3.Grounding bolts

4.Antenna interface2

5.Optical fiber card slot waterproof glue stick 1

6.Optical fiber card slot waterproof glue stick 2

7.Power cord card slot waterproof glue stick

8.Hoisting bracket

9.Upper shell

10.Guiding lights

11.Heat dissipation strip

12.upper shell

13.Handle

14.Bolt for mounting the support.

15.Operation and maintenance of window handles

16.Optical fiber interface

17.Operation and maintenance of window cover

18.Power input interface

19.Optical fiber crimping clamp

20.Power cord crimping clamp.

Application

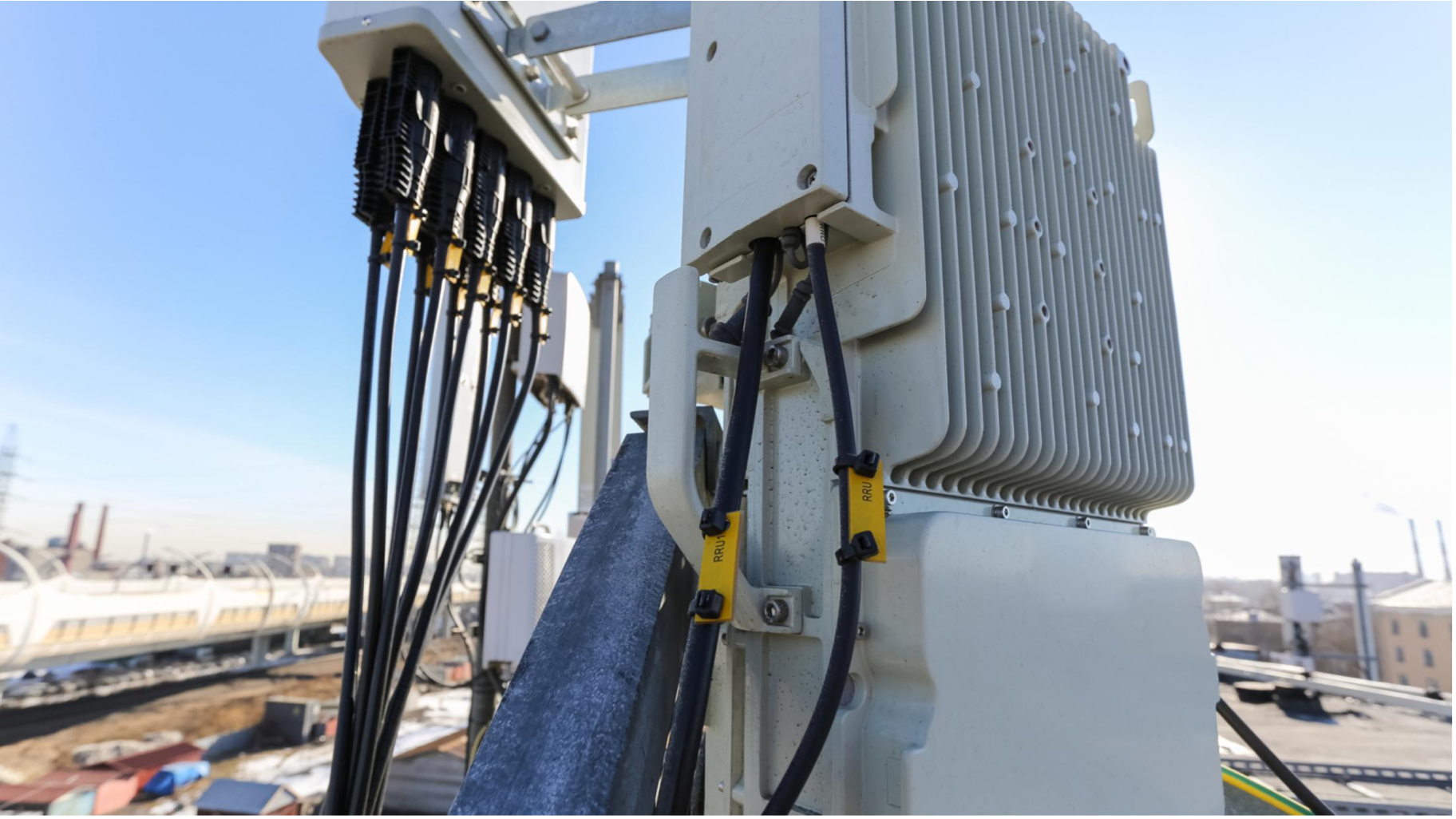

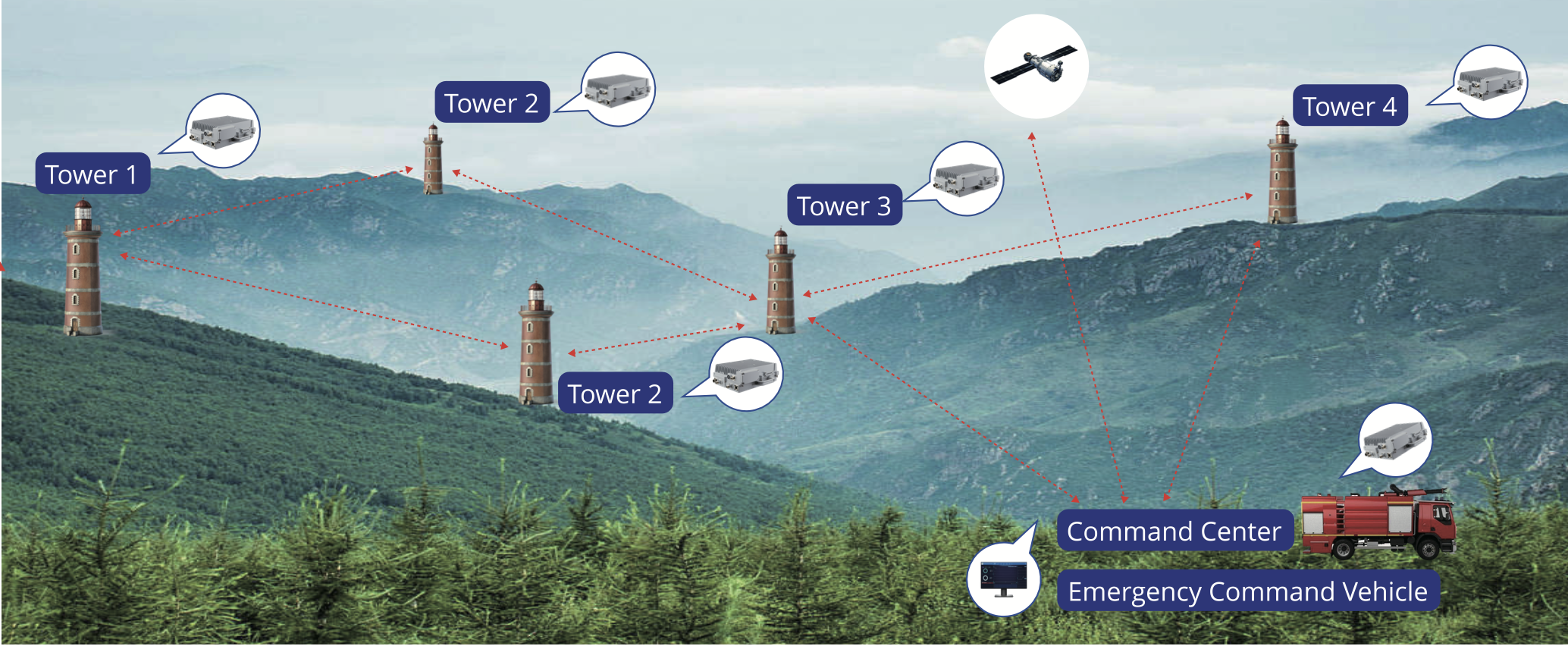

The Patron-G20 integrated base station can be mounted on fixed objects such as base station towers. Through a certain height, it can effectively expand the coverage range between self-organized networks and solve problems such as long-distance signal transmission. The forest fire prevention emergency linkage command system uses the base station to realize the coverage and monitoring of the forest fire prevention network. Once an abnormal situation occurs in the forest, it can be remotely commanded and dispatched to the scene immediately.

Specifications

GENERAL
Model	4G LTE base station-G20
Network Technology	TD-LTE
Number of carriers	Single carrier,1*20MHz
Channel bandwidth	20MHz/10MHz/5MHz
User capacity	128 users
Number of channels	2T2R, support MIMO
RF Power	2*10W/channel
Receiving sensitivity	≮-103dBm
Coverage range	Radius 20km
Throughout	UL：≥30Mbps，DL：≥80Mbps
Power Consumption	≯280W
weight	≯10kg
volume	≯10L
levels of protection	IP65
Temperature (operating)	-40°C ~ +55°C
Humidity(operating)	5% ~ 95% RH(No condensation)
Air pressure range	70kPa ~ 106kPa
Installation method	Support fixed installation and on-board installation
Heat dissipation method	Natural heat dissipation
FREQUENCY(Optional)
400Mhz	400Mhz-430Mhz
600Mhz	566Mhz-626Mhz, 606Mhz-678Mhz
1.4Ghz	1447Mhz-1467Mhz
1.8Ghz	1785Mhz-1805Mhz
