50KM Drone Long Range TCPIP/UDP MIMO IP MESH Link

Model: FD-615MT

FD-615MT build a no center, self-forming, self-adapting and self-healing dynamic routing/

automatic relay communication mesh network. It achieves dynamic routing, multi-hop relay HD video, multi-channel data and fidelity voice between different nodes of the same network in complex applications.

FD-615MT provide real-time HD video and broadband Ethernet connection with 30Mbps transmission rate and distance of 50km (Air to Ground) with smart antenna MIMO and self-forming packet wireless mesh network AD-HOC/MESH.

It has great advantages in applied for VTOL/fixed wing drone/helicopter wireless transmission with only 280g weight.

It comes in 10W and 20W version to create an encrypted communications link for UAV swarm beyond line of sight in complex RF environments.

Inquire

Product Detail

Features

Equipped with MESH technology.

It designed based on TD-LTE wireless communication standard, OFDM and MIMO technologies. It doesn't rely on any carrier's base station. Self-forming, self-healing mesh architecture

The network automatically switches routes based on factors such as the number of transceiving and channel environment.

Long Range HD Video Communication and low latency

Offers 50km air to ground full HD video downlink with bi-directional data transmission for VTOL/fixed wing drone/helicopter.

Featuring less than 60ms-80msof latency for 150km, so that you can see and control what's happening live.

Frequency-Hopping Spread Spectrum (FHSS)

IWAVE IP MESH product will internally calculate and evaluate the current link based on factors such as received signal strength RSRP, signal-to-noise ratio SNR, and bit error rate SER. If its judgment condition is met, it will perform frequency hopping and select an optimal frequency point from the list.

Whether to perform frequency hopping depends on the wireless state. If the wireless state is good, frequency hopping will not be performed until the judgment condition is met.

Network management software to manage all the nodes via real time SNR, RSSI, distance, etc.
•High-throughput, long-range TCP/IP/UDP data communication meets the needs of advanced robotic platforms such as drones and UAVs.
•High throughput: up to 30 Mbps
•Long range: over 50 km
•Low-switch, easy integration
•API documentation available for third-party platform compatibility
•Multiple bands and available advanced interference avoidance
•Up to 10Watts output power
•Up 30 Mbps Data Throughput
•HD video and telemetry data based on IP
•Single/Dual Band Frequency Options

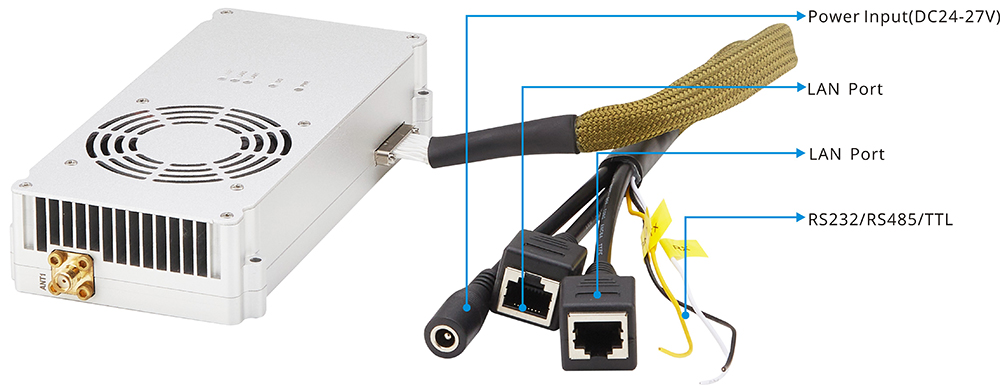

•I/O Interfaces: Ethernet, USB, RS232/TTL/RS485
•Advanced Encryption: AES128/ZUC/SNOW3G

Application

• MESH long-distance communication

• Power and hydrological line patrol monitoring

• Emergency communications for firefighting, border defense, and military

• Maritime communications, Digital oilfield, Fleet formation

Specification

GENERAL		MECHANICAL
TECHNOLOGY	MESH based on TD-LTE Technology Standard	TEMPERATURE	-20º to +55ºC
ENCRYPTION	ZUC/SNOW3G/AES128 OptionalLayer-2 Encryption	TEMPERATURE	-20º to +55ºC
DATA RATE	30Mbps (Uplink downlink)	DIMENSIONS	1506830mm
SENSITIVITY	10MHz/-103dBm	WEIGHT	305g
RANGE	50km (Air to ground) NLOS 3km-10km(Ground to ground)(Depends on the actual environment)	MATERIAL	Silver Anodized Aluminum
NODE	16nodes	MOUNTING	Vehicle-mounted/Onboard
MODULATION	QPSK, 16QAM, 64QAM
MIMO	1T2R	POWER
Anti-jamming	Automatically frequency hopping
RF POWER	10watts	VOLTAGE	DC 24V±10%
LATENCY	One Hop Transmission≤30ms	POWER CONSUMPTION	30watts
Frequency Options		INTERFACES
1.4Ghz	1420-1530MHz	RF	2 x SMA
800Mhz	806-826 MHz	ETHERNET	1xJ30
Note: The frequency band supports customized		PWER INPUT	1 x J30
		TTL Data	1xJ30
		Debug	1xJ30

COMUART
Electrical Level	3.3V and compatible with 2.85V
Control Data	TTL
Baud rate	115200bps
Transmission Mode	Pass-through mode
Priority Level	Higher priority than the network portWhen the signal transmission is crowed, the control data will be transmitted in priority
Note:1. The data transmitting and receiving is broadcast in the network. After successful networking, FD-615MT node can receive serial data. 2. If you want to distinguish between sending, receiving and control, you can define the format.
