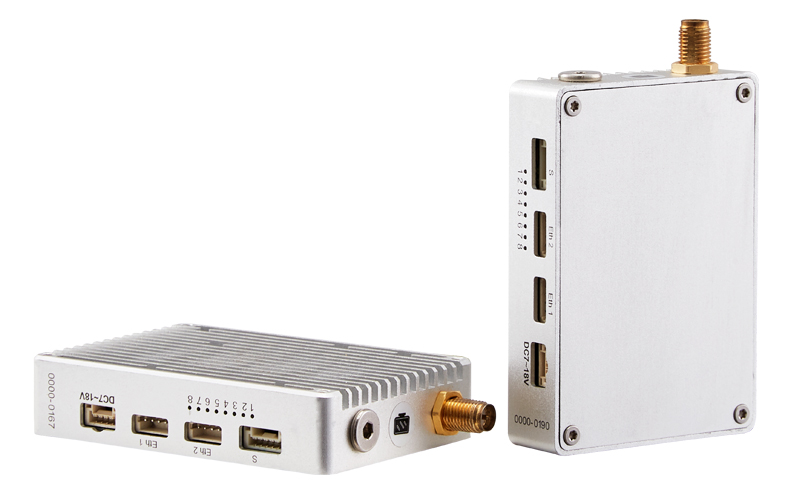

12km TCPIP/UDP COFDM UAV Video And Data Downlink

Model: FIP-2410

FIP-2410 mini transceiver is a new designed UAV video and data links equipment based on orthogonal frequency division multiplexing technology for high-definition video images and data transmission.

It supports 2.3-2.5Ghz, transmitting HD IP Video and Bi-directional for 10-12km air to ground. With dual 10/100Mbps Ethernet interface and serial port, it provides HD video and bi-directional data transmission in real time.

Even at 400km/h drone ‘s cruise speed you can be sure of reliable and excellent communication.

As a professional drone video transmitters company, we offer various radio links for your commercial fixed wing drone and small multi-rotor UAV with competitive pricing. Please feel free to request a quote.

Inquire

Product Detail

Features

• Multiple Frequencies can be optioned.

2.3Ghz,2.4Ghz,2.5Ghz

• Robust Mid-distance communication

8-12Km Full 1080P HD real-time video embedded bi-directional data link.

• Small form factor

Fits in the palm of your hand and weighs less than a lemon.

• Encrypted Transmission.

Adopt AES128 for the video encryption ensure no one unauthorized can intercept your video feed.

• Compatible with a broad range of flight controllers, mission software

Serial port supports Telemetry/MAVLINK/TT/RS232, APM, Pixhawk 2.1, Pixhawk V3, Pixhawk 2 & Pixhawk4

• Double100Mbps Ethernet ports support UDP/TCP

• Good impact resistance

Conductive anodizing craft and CNC technology double aluminum alloy Shell

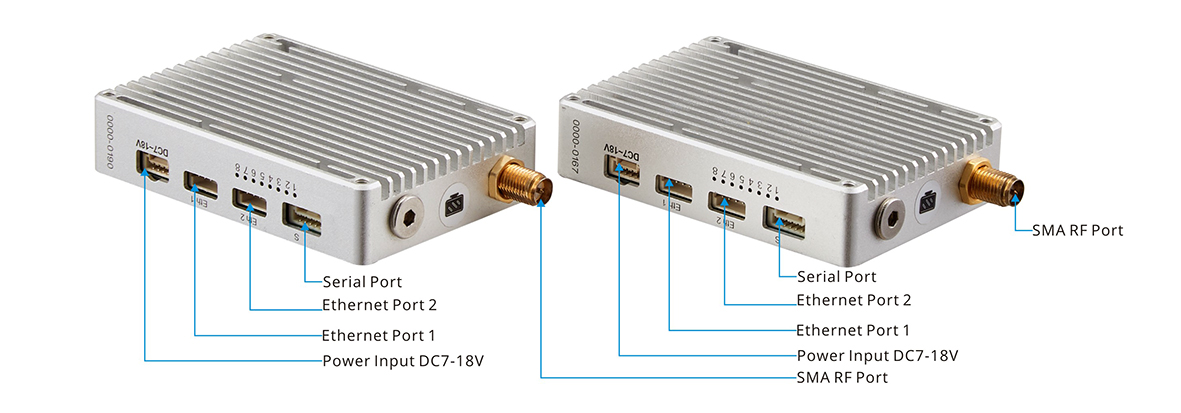

Various Ports

FIP-2410 offers two Ethernet ports which support UDP/TCP for video channel, and one serial port that support Telemetry/MAVLINK/TT/RS232/ APM/Pixhawk for data control channel. SMA Port interface can directly connected Antennas or feeder cable.

Application

FIP-2410 is an COFDM Drone Video Transmitter that provides robust video for small class Drones base on superlight weight advantage.

It can extend None Lign-of-Sight (NLOS) operation and overcoming dead spots in urban or industrial areas.

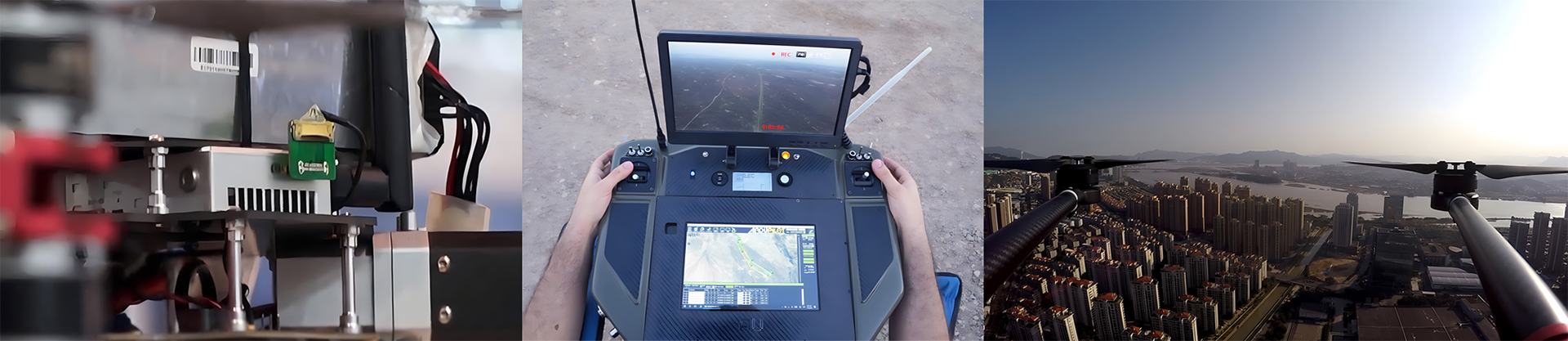

FIP2410-10km-UAV-Digital-video-sender-application-scenarios

Specifications

Frequency	2.3Ghz(2304Mhz-2390Mhz): 2T2R
	2.4GHz(2402Mhz-2482MHz): 1T1R (2T2R on request)
	2.5Ghz(2500Mhz-2570Mhz): 2T2R
RF Transmitting Power	30dBm (air to ground 8-12km)
Frequency Bandwidth	4/8MHz
Antenna	2.4Ghz: 1T1R omni antenna (2T2R On request)
Antenna	2.3Ghz and 2.5Ghz: 2T2R Omni antenna
Baud rate	Software adjustment
Communication Channel Encryption	AES 128
Transmission Mode	point to point
Error Detection	LDPC FEC
Start-up time	25s
Two-way function	Support video and duplex data simultaneously
Data	RS232 (±13V), TTL (0~3.3V)
Transmission Rate	3/6Mbps
Serial Baud Rate	115200bps
Receive Sensitivity	-100dbm@4Mhz, -95dbm@8Mhz
Power	DC 7-18V
Power Consumption	TX: 6Watts
Power Consumption	RX: 5Watts
Temperature	Operating temperature: -40 ~ +85°C
Temperature	Storage temperature: -55 ~ +85°C
Interface	Power input interface × 1
	Antenna interface × 1 (2.3Ghz and 2.5Ghz Antenna interface x 2)
	Ethernet Interface × 2
	Serial Interface*1
Indicator	Power indicator (8)
	Connection Status Indicator (4, 5, 6, 7)
	Signal Strength Indicator (1, 2, 3)
Metal Case Design	CNC technology
	Double aluminum alloy shell
	Conductive anodizing craft
Size	68×48x15mm
Net Weight	Tx: 68g
Net Weight	Rx: 68g
